Windows Hello Passkeys in TPM 2.0: Non-Exportable Private Key & Enclave Lock Fix

Yes. When Windows Hello serves as a FIDO2 platform authenticator, your passkey private key is generated within and permanently stored inside your motherboard’s physical Trusted Platform Module (TPM 2.0) chip as a non-exportable cryptographic credential. The private signing key (secp256r1) never leaves the silicon boundary of the TPM; private key bytes are never loaded into system RAM, Windows pagefiles, or browser sandboxes. Only signed cryptographic assertion signatures (r, s) exit the hardware chip after successful user verification via PIN or biometric sensors.

When Windows Hello displays “Something went wrong”, fails to summon the biometric or PIN prompt, or returns a NotAllowedError during WebAuthn login, stop immediately before attempting any destructive system commands.

A Windows Hello passkey is a device-bound cryptographic credential. Its NIST P-256 (secp256r1) private key is generated within and permanently bound to your motherboard’s Trusted Platform Module (TPM 2.0).

Most authentication failures are not physical hardware failures. They typically stem from browser-level origin mismatches (rpId), prompt timeouts, missing credentials on that specific machine, or temporary TPM anti-hammering lockouts. Understanding the exact failure mode enables you to restore access safely without destroying your credentials.

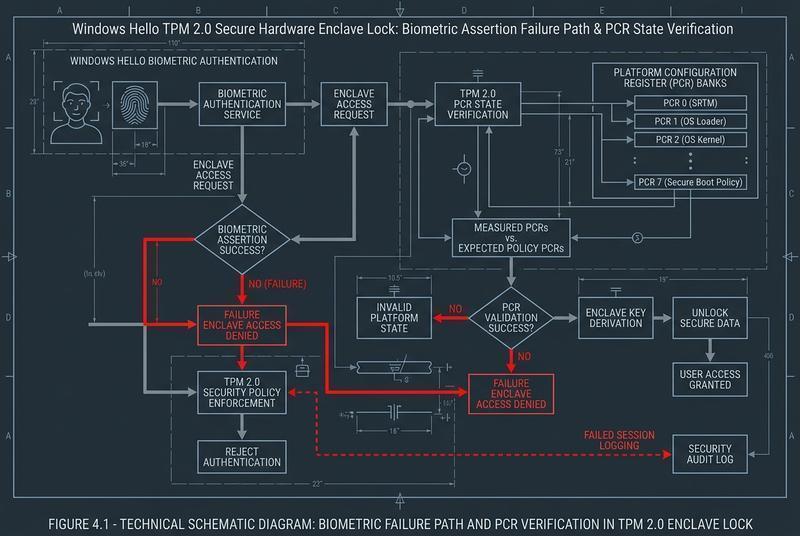

Architectural Reality: How Windows Hello Protects Passkeys

To diagnose errors accurately, it is essential to distinguish between the physical cryptoprocessor, the operating system credential layer, and the browser WebAuthn API:

  ┌────────────────────────────────────────────────────────┐
  │ Motherboard Hardware: TPM 2.0 (Discrete or Firmware)   │
  │   - Storage Root Key (SRK) & Endorsement Key (EK)      │
  │   - P-256 Private Key Generation (Silicon Isolated)    │
  │   - Hardware Anti-Hammering Logic (PIN Brute-Force)    │
  └───────────────────────────┬────────────────────────────┘
                              │ Microsoft Platform Crypto Provider
                              ▼
  ┌────────────────────────────────────────────────────────┐
  │ Windows 11 OS Credential Layer (Ngc / WebAuthn APIs)   │
  │   - User Verification: Windows Hello PIN / Biometrics  │
  │   - Cryptographic Container Metadata Indexing          │
  └───────────────────────────┬────────────────────────────┘
                              │ CTAP2 / WebAuthn Standard
                              ▼
  ┌────────────────────────────────────────────────────────┐
  │ Browser Sandbox / Relying Party (dApp or Web Service)  │
  │   - rpId / Origin Validation & Challenge Generation    │
  │   - Receives Signed Assertion: r, s (Never Private Key)│
  └────────────────────────────────────────────────────────┘

1. Where Is the Device-Bound Key Stored?

When Windows Hello acts as a FIDO2 platform authenticator, the private key is generated directly inside the physical TPM 2.0 chip (discrete TPM or CPU firmware TPM such as Intel PTT or AMD fTPM). The private key is held in protected non-volatile RAM within the TPM silicon.

In contrast, third-party password managers (such as 1Password or Bitwarden) running on Windows do not store passkeys in the TPM; they store them in encrypted software database vaults protected by a master password.

2. What Exactly Does the TPM Protect?

The TPM protects the private signing key from extraction and memory sniffing:

• Memory Isolation: The private key bytes never enter system RAM, operating system page files, or browser memory.
• On-Chip Signing: When an authentication challenge is received, Windows Hello sends the challenge hash into the TPM. The TPM calculates the ECDSA signature internally and returns only the signature tuple $(r, s)$ and authenticator data.
• User Verification Gating: The TPM will not release a signature unless the local user verification gate (Windows Hello facial scan, fingerprint, or PIN) succeeds.

3. What Does “Non-Exportable” Mean?

“Non-exportable” is a core cryptographic guarantee of hardware-bound FIDO2 authenticators. It means there is no command, API, or administrative privilege that can read the private key out of the chip. You cannot export a Windows Hello passkey into a .pem file, save it to a USB drive, or transfer it to another computer. If your motherboard is destroyed or the TPM cleared, the key is permanently gone. For an in-depth breakdown of export alternatives, see our guide on Why Windows 11 Device-Bound Passkeys Cannot Be Exported.

4. Local Windows Hello Credential vs. Synced Passkey

It is crucial not to confuse local platform credentials with cloud-synced passkeys:

5. Why Having a TPM Does Not Guarantee Error-Free Login

Having a healthy TPM 2.0 chip does not prevent authentication errors. WebAuthn operates across multiple abstraction layers. An authentication request can fail before the TPM is ever queried if:

• The website requests a credentialId that was registered on a different device or browser profile.
• The domain or origin does not match the registered Relying Party Identifier (rpId).
• The user cancels the prompt or the browser window loses focus, throwing a NotAllowedError.
• The browser’s permissions policy blocks the WebAuthn API inside cross-origin iframes.
• The TPM has entered a temporary anti-hammering lockout due to prior incorrect PIN attempts.

6. Alternative Logins vs. Pre-Configured Recovery

• When Alternative Login Is Possible: If you are logging into a centralized exchange, Web2 service, or hybrid application, the service often supports alternative authenticators. You can select “Use another device” to authenticate via FIDO2 Hybrid (scanning a QR code with your smartphone) or use an SMS/hardware security key fallback.
• When Pre-Configured Recovery Is Required: In self-custody Web3 architectures—such as ERC-4337 Smart Accounts (e.g. Coinbase Smart Wallet, Safe, Biconomy)—the passkey public key is registered directly in a smart contract on-chain. There is no customer support desk to reset your login. If the device-bound key is lost, access can only be restored if you pre-configured an on-chain secondary signer, multi-sig threshold, or social recovery guardian before the failure occurred.

Safe Diagnostic Table: Symptom to Actionable Next Step

Use this matrix to diagnose your exact failure mode safely without executing destructive system modifications:

Safe Verification Protocol: Step-by-Step

Follow these non-destructive steps to isolate whether an issue is located in the hardware TPM, the Windows OS, or the browser:

Step 1: Verify TPM Health Non-Destructively

Open an elevated PowerShell prompt and run:

# Safe non-destructive query of TPM hardware state
Get-Tpm | Select-Object TpmPresent, TpmReady, ManufacturerIdTxt, TpmAutoProvisioning

• Expected Output: TpmPresent: True and TpmReady: True.
• Interpretation: If TpmReady is True, your TPM is healthy and functional. The login failure is situated at the browser or WebAuthn configuration layer, not a hardware failure.
• Caution: Do not execute Clear-Tpm or Initialize-Tpm.

Step 2: Test OS-Level Windows Hello

Press Win + L to lock your workstation. Attempt to unlock using your Windows Hello PIN or fingerprint.

• If lock screen login succeeds: Windows Hello, your biometric driver, and the TPM are communicating properly. The issue is strictly isolated to the browser, the specific website’s rpId, or cross-device transport.
• If lock screen login fails: The TPM may be experiencing an anti-hammering dictionary lockout.

Step 3: Handle TPM Anti-Hammering Lockout Safely

TPM 2.0 chips incorporate built-in protection against brute-force PIN guessing. If incorrect PINs were entered repeatedly, the TPM enters a temporary lockout state:

• In Windows 11, the TPM enforces an exponential backoff period (ranging from 10 minutes to several hours depending on vendor firmware).
• The Safe Resolution: Leave the computer powered on and awake. Do not repeatedly restart or attempt rapid PIN entries. As the lockout timer expires, normal authentication will resume automatically.

Step 4: Verify Browser WebAuthn API Support

To determine whether your browser environment can communicate with platform authenticators, you can use diagnostic testing utilities.

You can test basic WebAuthn API responsiveness in our client-side WebAuthn & Passkey Debugger.

Preventing Permanent Passkey Lockouts in Web3

Hardware-bound passkeys provide unmatched phishing resistance, but physical hardware can fail. For critical Web3 accounts, always build architectural resilience:

1. Enroll at Least Two Independent Authenticators: When creating a smart account or exchange passkey on your Windows PC, immediately add a secondary passkey from your mobile device (iPhone Secure Enclave or Android StrongBox) or a physical FIDO2 YubiKey.
2. Configure On-Chain Multi-Signers: In ERC-4337 smart contract wallets, add your secondary device as an authorized on-chain signer. Both devices can then independently sign UserOperations.
3. Set Up Recovery Guardians: Use account abstraction features (e.g. social recovery, timelocked guardians) to ensure that if a physical PC is lost or destroyed, trusted guardians can authorize a key rotation transaction.

Treat your TPM 2.0 chip as an unextractable hardware safe. Always ensure you have a pre-configured recovery path before a hardware failure occurs.
